High Performance Hyundai Tilting Excavator Bucket With ISO Certified
Application:
-Tilt cleaning.
-Multi-excavating.
-Handling soft material
Specification:
| Excavator model | Hyundai R210-9 |
| Bucket width | 2000mm |
| Bucket capacity | 1.02 cum |
| Tilt degree | +/- 45 degree |
| Cylinders | 2 pcs |
| Pipe joint | 3/8" |
| Cutting edge material | Hardox450 |
| Cutting edge thickness | 30mm |
| Warranty 6 month | 6 month |
| Installation size | Standard dimension |
Description:
1. Driven by hydraulic pressure, high efficiency and convenient.
2. In rugged work condition,If the excavator have a tilt bucket,do not need to move often for adjusting position. It's convenient and high efficient.It will be very popular in the future.
3. Material: Main body is Q345B, as customer request, cutting edge is Hardox450. But if you needn't Hardox450 material, we also can make it by Q345B.
4. The cutting edge is single edge with Hardox450 material, but if you need, we also can make bolted cutting edge for you.
5. The width is as per customer request with 2000mm, the width is optional, if you want to make more wider or more shorter, just let me know.
6. Standard tilt degree is +/-26 degree, if you need higher degree, we can customize for you. Max. can up to +/-45 degree.
7. For big machine over 6 ton excavator, the cylinder is 2 pcs, but if very small excavator, only 1 cylinder.
8. We usually use Hardox450 as the cutting edge of out tilt bucket,Hardox450 is high hardness steel.
9. We have cylinder protection guard for cylinder. The cylinder Max. suffer from stress is 32MPa.
10. All our pins is harden pins,and we prepare bushing for all pins,and each pin&bushing have grease seals.
11. For main pin(connect pick-up-head to mainbody),we double sealed for greace at both side.
12. Every month, we have 2-3 container tilt bucket exported.

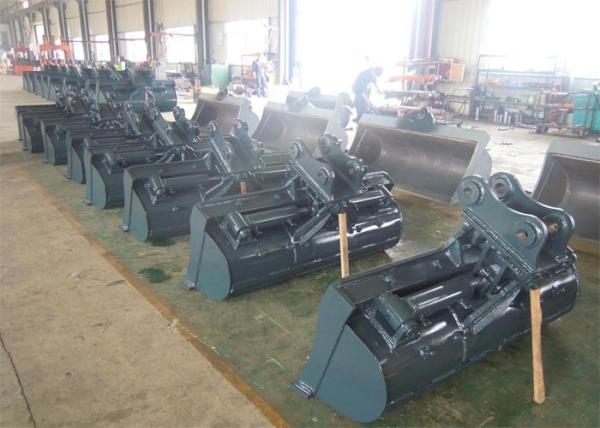

Tilt bucket pictures in Workshop:
